AUTOMATIC LABELING MACHINE Labeling speed: about 20-35 cans/minute Labeling accuracy: + or - 0.0393 inch (does not include product label errors). Applicable product size: diameter 1.1811-4.331 inches, Height 1.1811-13.779 inches. Applicable label range: length 0.393-10.236 inches, bottom paper width: 0.393-5.906 inches. Maximum label supply: OD 11.811 inch or less. Inner diameter 2.992 inches. Ambient temperature/humidity: 0-122 FI 15-85%. Voltage specifications: 220V  50Hz, DIM  L82.677-W51.181-H66.929 inches. Weight: 418.878 pounds. Label spacing: 0.079-0.118 + or - .0079, labeling method for roll material. Material: it is recommended to use Glassine paper, the bottom paper to avoid cuts affecting the normal operation of labeling.

All Machines Comes With A One Year Warranty.

Contact Us For Quote Or Financing

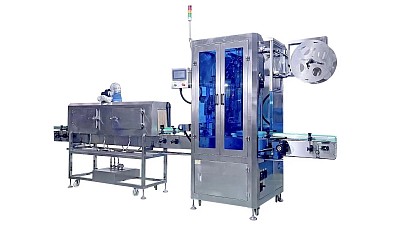

The Automatic High Speed Shrink Label Inserting Machine with Option of Shrink Tunnel is suitable to insert Shrink Label on Glass, Plastic, Aluminum, Tin  and Containers in FOOD, FMCG, Pesticides, cosmetics and Pharmaceutical Industries. The machine incorporates latest sophisticated SERVO Control Sleeve Applicator. The Machine construction in Heavy Duty S.S. 304 Material but with Compact design. This Flexible Sleeving Machine is suitable for decoration of wide range of Round Bottles and Containers. Special machine also available for special shape containers. Machine can give speed up to 300 Bottles per minute depending on Sleeve Cut Length, Shape of Bottle and Shrink percentage of Sleeve. Machine with Optional Pre-Fixing Hot Air Nozzle for Setting Sleeve Position at Top or Bottom of Bottles before entering into Shrink Tunnel. Sleeving Machine having Time Tested Rotating type SERVO Controlled Sleeve Cutting System for high Speed and accurate sleeve cutting. Machine is ideal to use on Round and other curve shape Bottle or Containers where Sticker Labelling is not possible to use. Labeling Speed 350 pieces min, Bottle Diameter 1.1 inch -4.92 inch can customize according to your product, Bottle Height 1.1 inch 11.02 inch, Applicable Label Length 1.1 inch-11.02, Applicable Label Thickness 0.0011 inch -0.00051, Applicable Roll Label Inner Diameter in 0.63inch, Applicable Roll Label Outer Diameter max 19.69 inch, Label Material PVC PET OPS Power 220V Weight 2650lb, Temperature control 120-570, Machinery Capacity 20-100pcs/min, Label material PVC, PET.

All Machines Comes With A One Year Warranty.

Contact Us For Quote Or Financing

The cans roll into the machine and pass through the hot glue adhesive points. The can gets coated with a hot glue adhesive and rolls with glue and presses the front of the label on. At the same time the label end was glued by gluing mechanism. With the can being fed through machine the label has been permanently applied to the can. This machine has alternately label supply mechanism. There is no need to stop the machine when adding labels. The end glue supply is triggered by the can . It will not supply glue without can being present.  Machines using frequency control can be adjusted according to production requirements. Technical Parameters: Labeling capacity 200-500 cans CPM can sizes 202 to 603 Labeling glue: Hot melt glue + Cold Glue Power : three-phase 380V Electric power 2.62Kw. Compressed air 2-4Kg/m2, 10 L/ min Overall dimension 6ft × 2.5ft × 4.1ft Weight 1,433lb

All Machines Comes With A One Year Warranty.

Contact Us For Quote Or Financing

This filling machine uses piston pump and rotary valve, suitable for filling all kinds of thick & sticky material in the food industry like: honey, sauces, jams, marmalade, tomato paste, ketchup, chocolate paste, potted meat etc. The machine can be made with 4 up to 20 filling heads  according to the the customers needs.  Filling speeds 25-60 cpm /min, 220V 50Hz machine controls touchscreen PLC, Weight 1,200ld, DIM L10.5ft/W4ft/H7ft,

All Machines Comes With A One Year Warranty.

Contact Us For Quote Or Financing

Customized Auger Filler P1 one or two headed Filler according to your can/bottle size and filling parameters Capacity 25-50 cans/min Air supply 0.6-0.8MPa, Power 1.5hp 220V 50Hz Machine DIM L10ft*W4ft*H10ft weight 700Ib
